Description
Pro-Fit Beverage Dispenser
The PRO-FIT Beverage Dispensing System is an Electronically Controlled Liquor system. It’s easy to use and easy to install. Whether it’s on the Boat, Home Bar, Outdoor Kitchen, The Man Cave, or any other place you entertain, the PRO-FIT System will be ready to serve!

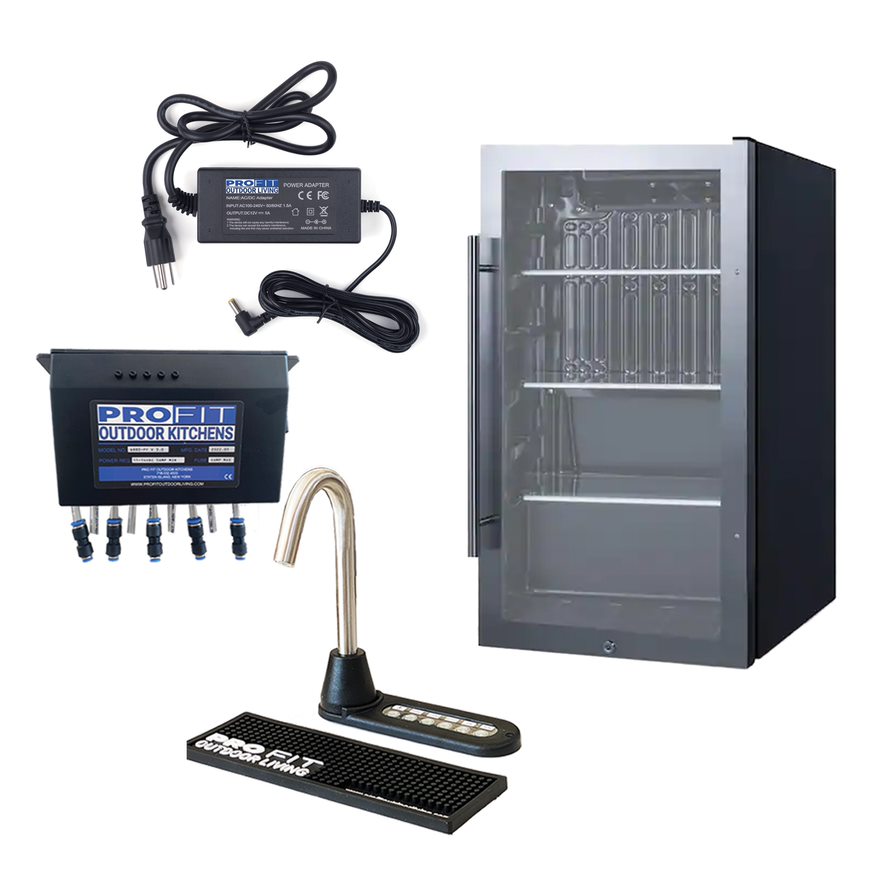

Kit Includes:

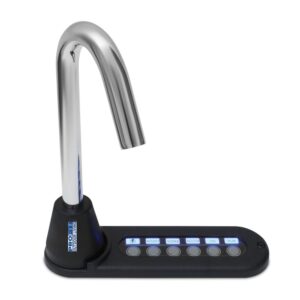

- Beverage Dispenser
- Pro Fit Spill Mat
- Brilliant BLE LED Display Keypad
- 110V Power Supply Cable
- Pump System
- Logo Label Pack
Brilliant BLE LED Display Keypad
Key Features:
- adjustable pre-measure
- quite operation
- Independent plumbing design serves the drink of choice without intermixing.
- faucet contains five dedicated lines

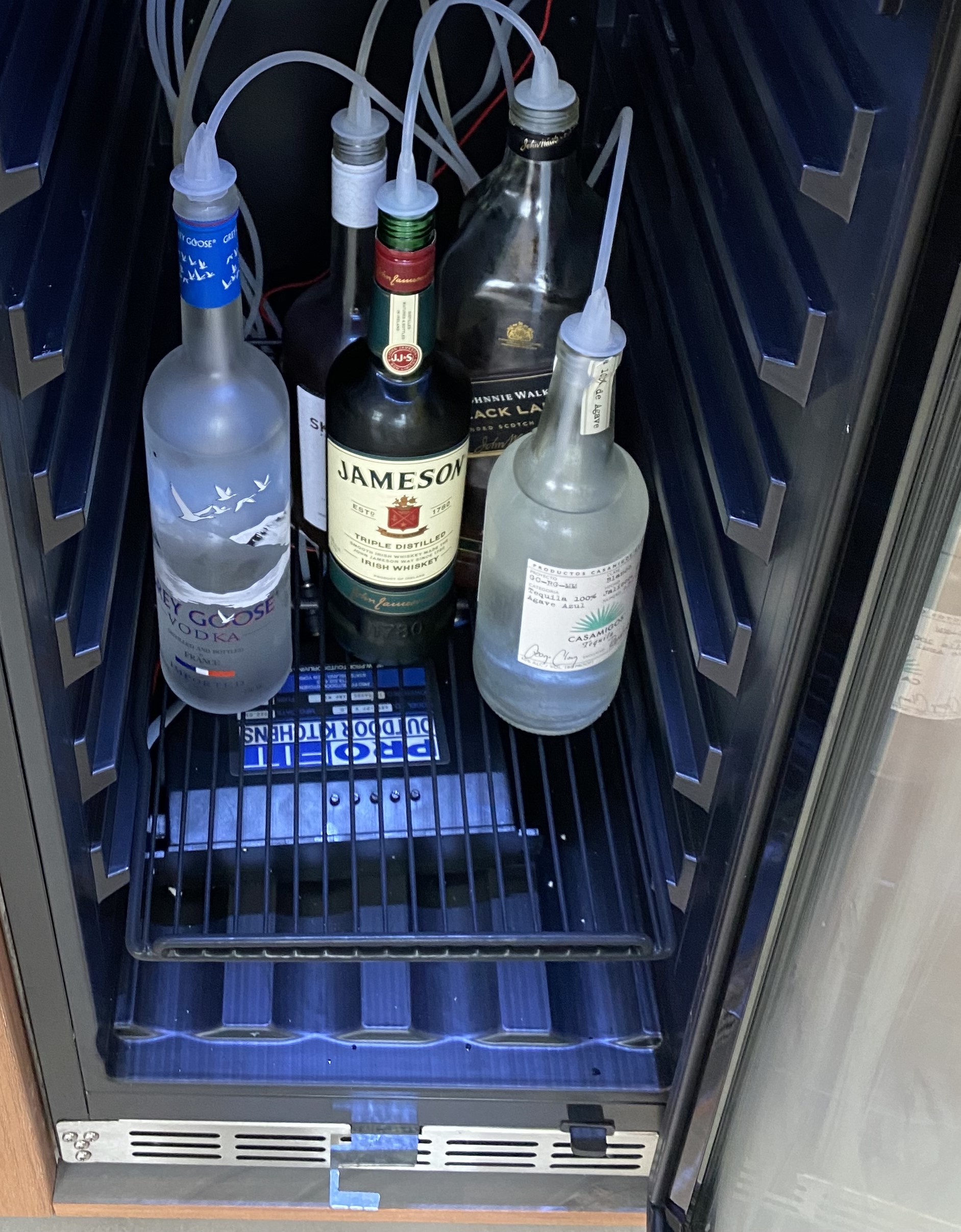

- CONNECTS DIRECTLY TO THE BOTTLE, NO SPECIAL containers needed
- Run Dry without Damage
Spill Mat or Drip Mat: The PRO-FIT Rubberized PVC Drip Bar Mat protects your bar top surface from glassware scratches and spills while making drinks. Our Drip Bar Mat is slip-resistant and adheres to the counter surface without leaving marks.
Brilliant Blue LED: Our Brilliant Blue LED diffused Display Panel for Each Brand / Selector Button with factory labels; WHISKEY – VODKA – SCOTCH – GIN – RUM. The LED Display Panel is 100% WATER-PROOF Design.
Logo Label: These labels are printed on LED transparent material and will allow the proper back-lighting to illuminate the decals with the PRO-FIT LED Keypad.

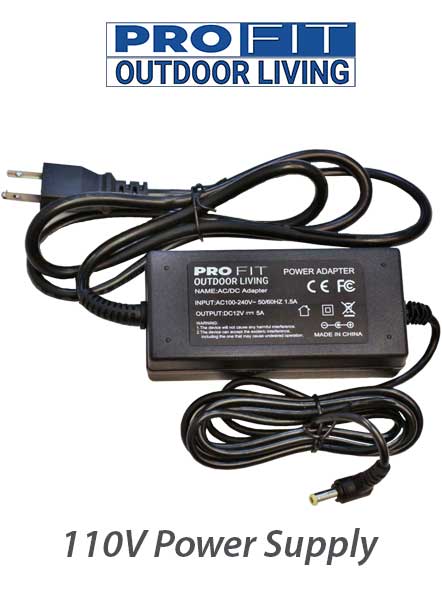

110V Power Supply: This power supply delivers the required amperage and voltage for all Pro-Fit Beverage Systems. LED indicator confirms power is connected correctly
The Pro-Fit Refrigerator Description
The Pro-Fit Refrigerator features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17 inches deep, it features a jet-black cabinet with a sealed back for safe installation in the outdoors.
Key Features
- Designed and constructed for safe use in the outdoors
- 17″ shallow depth makes it ideal for smaller commercial and residential settings
- Stainless steel cabinet adds durability in a modern look
- Seamless stainless steel door trim adds modern elegance to any setting
- Slim 19″ wide fit offers full storage and display in a compact footprint
The Pro-Fit Refrigerator features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17 inches deep, it features a jet-black cabinet with a sealed back for safe installation outdoors. The user-reversible double-pane tempered glass door includes a seamless stainless-steel trim and a pro-style handle. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.
Inside, the Pro-Fit refrigerator utilizes an internal fan to ensure the interior is evenly cooled from top to bottom, while the automatic defrost system allows for minimal user maintenance. LED lighting allows full visibility of stored items in the jet-black interior. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.
Specifications
| Overview | |
|---|---|
| Height of Cabinet | 33.0″ (84 cm) |
| Width | 19.0″ (48 cm) |
| Depth | 17.0″ (43 cm) |
| Height of Cabinet | 33.0″ (84 cm) |
| Width | 19.0″ (48 cm) |
| Depth | 17.0″ (43 cm) |
| Depth with Handle | 18.63″ (47 cm) |
| Depth with door at 90° | 34.75″ (88 cm) |
| Capacity | 3.13 cu.ft. (89 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 70.0 lbs. (32 kg) |
| Shipping Weight | 100.0 lbs. (45 kg) |
| Refrigerator Features | |
|---|---|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Can Storage | Yes |
| Thermostat Type | Dial |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.88oz |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 34 to 50ºF |
| Sound Level | 32.6 dB |
| Dimensions | |
|---|---|
| Interior Height | 29.0″ (74 cm) |
| Interior Width | 16.0″ (41 cm) |
| Interior Depth | 12.75″ (32 cm) |
| Compressor Step Height | 7.0″ (18 cm) |
| Compressor Step Width | 16.0″ (41 cm) |
| Compressor Step Depth | 6.25″ (16 cm) |
